Tag Nrho Tsis Siv Neeg Terminal Crimping Tshuab
Khoom nta
1.Adopt lub servo lub cev muaj zog tswj system kom ua tiav cov haujlwm xws li ruaj khov -ntev qhov chaw, xaim txiav thiab xaim stripping rau siab dua, kev ua haujlwm yooj yim thiab kev ua haujlwm ruaj khov.
2.Rotary viav caj npab nrog kov npo, txav tau kom phim cov neeg ua haujlwm 'kev txav txhua lub sijhawm.
3.Designed nrog 10 teeb ntawm lub cim xeeb ua haujlwm kom txo tau lub sijhawm siv rau kev hloov thiab hloov kho
4.Qhov ntau ntawm cov xov hlau tsim npog AWG34 rau AWG16, muab kev siv dav heev.
Technical Parameters
|
Qhov hluav taws xob |
AC220V / 50 / 60HZ Ib theem |
|
Muaj nuj nqi |
hlau txiav, ib zaug -sab stripping, Ob npaug-kawg stripping, ib zaug-kawg crimping, ob npaug-kawg crimping |
|
Muaj peev xwm ntau lawm |
Muaj peev xwm ntau lawm: 3,500 daim ib teev (rau qhov ntev li ntawm 300 hli), sib txawv nyob ntawm seb hom thiab qhov loj ntawm cov xov hlau |
|
Processable hlau ntau |
Thin wire AWG #34-#30 AWG #28-#24 Thick line type AWG #24-#12 |
|
Txiav ntev |
30-9999mm (Muaj peev xwm sib txawv ntawm kev txiav ntev nyob ntawm stripping loj thiab dav hlau crimp duab) |
|
Txiav tawm precision |
± 1mm + txiav ntev * qis dua 0.2% |
|
stripping ntev |
Xaus A: 0.5-10mm, Xaus B: 0.5-10mm |
|
Crimp peev |
3T |
|
Cua siab |
5-6kgf (yuav tsum siv cua huv thiab qhuav) |
|
Cov ntsiab lus tshuaj xyuas |
Tsis tshua muaj cua siab, xaim ploj, Stamping Tuag Defects, davhlau ya nyob twg uas ploj lawm, Tangled xov hlau |
|
Lub Cev Loj |
720 * 950 * 1200mm (Tsis muaj protrusions) |
|
Qhov hnyav |
Txog 358KG |

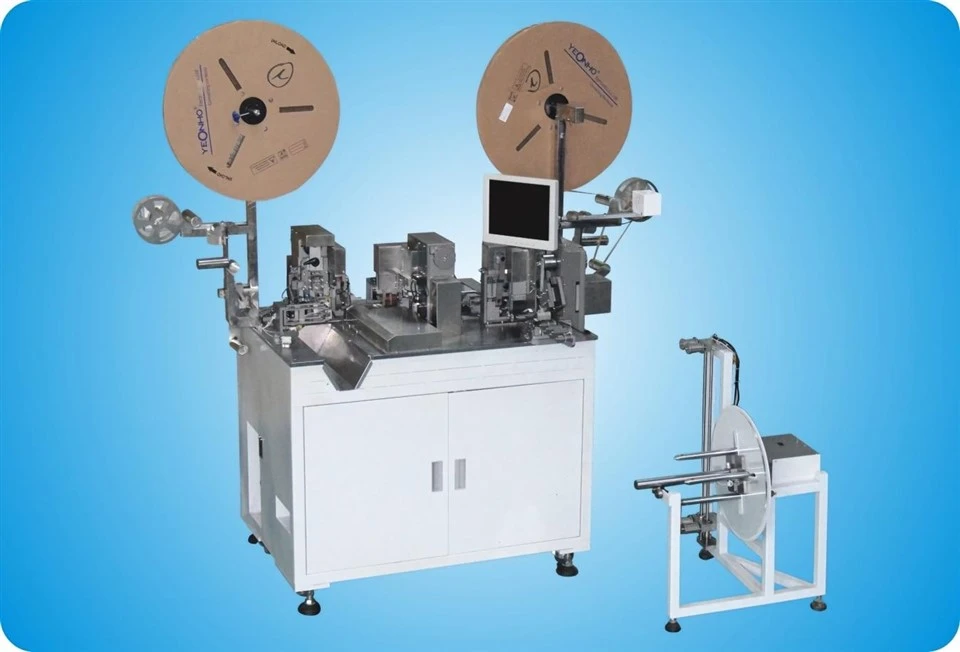

Tag Nrho Tsis Siv Neeg Terminal Crimping Tshuab
Kev ua haujlwm yooj yim
Qhov tseeb qhov chaw
ruaj khov thiab precision
